Ref. 822E IPTV-DVB-S2-2CI-48
822E IPTV-DVB-S2-2CI-48

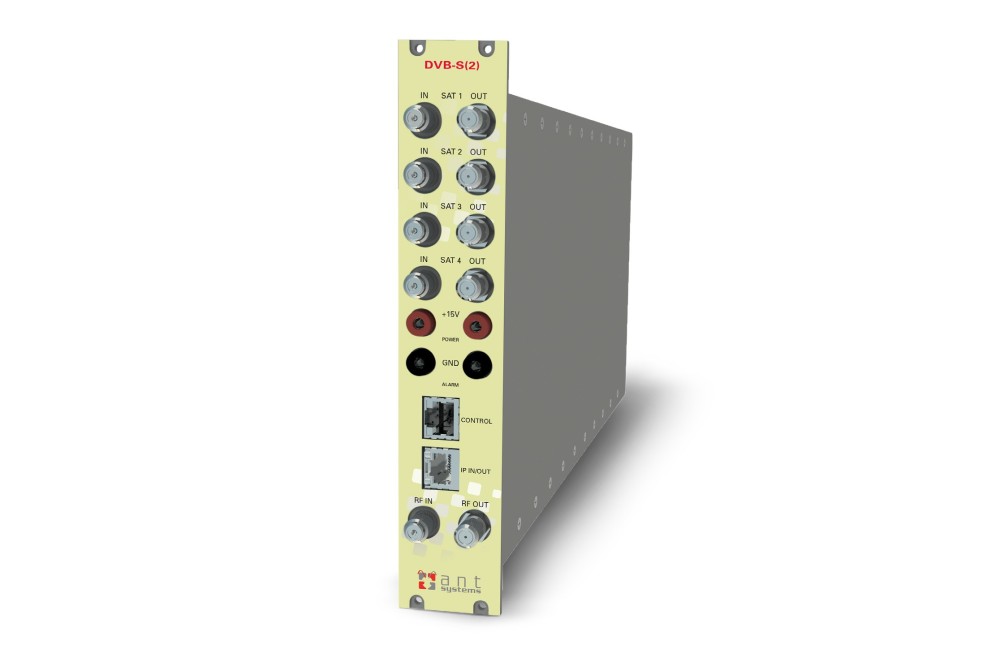

Satellite Module DVB-S(2) to IP | Multicast module
The new satellite module has 4 inputs allowing the reception of 4 different satellite bands per module. Because the module has 8 satellite tuners and a built-in multiswitch, reception of 8 different transponders coming from any of the 4 input satellite bands is possible.
- DVB-S(2) to IP
- 4 sat inputs
- 8 tuners
- 8 transponders
- 2 CI Slot
- up to 48 SPTS channels
| Satellite module | ||
|---|---|---|
| Input | ||
| Inputs | 4 x satellite (4 satellite bands per module) 1 IP Gigabit input (4 MPTS transport streams per module) | |
| Integrated multiswitch | Yes, allows flexible routing of satellite programs to multiplexes (QAM or COFDM) | |
| Configuration | Built-in webserver or optional UUI configuration software | |
| Remote access | Via RMU | |
| Encoded programs | From all 8 tuners. Can be routed through 1 or 2 CAMs and can be decoded using multi-service CAMs | |
| Output | ||
| DVB-T output | Mbps | Up to 31.7 / multiplex |
| DVB-C output | Mbps | Up to 51.3 / multiplex |
| IPTV output | Up to 64-SPTS channels in Multicast | |
| General | ||
| Dimensions | 5 RU x 8 TE x 367 mm | |
