880E Coax-AV-HDMI-4

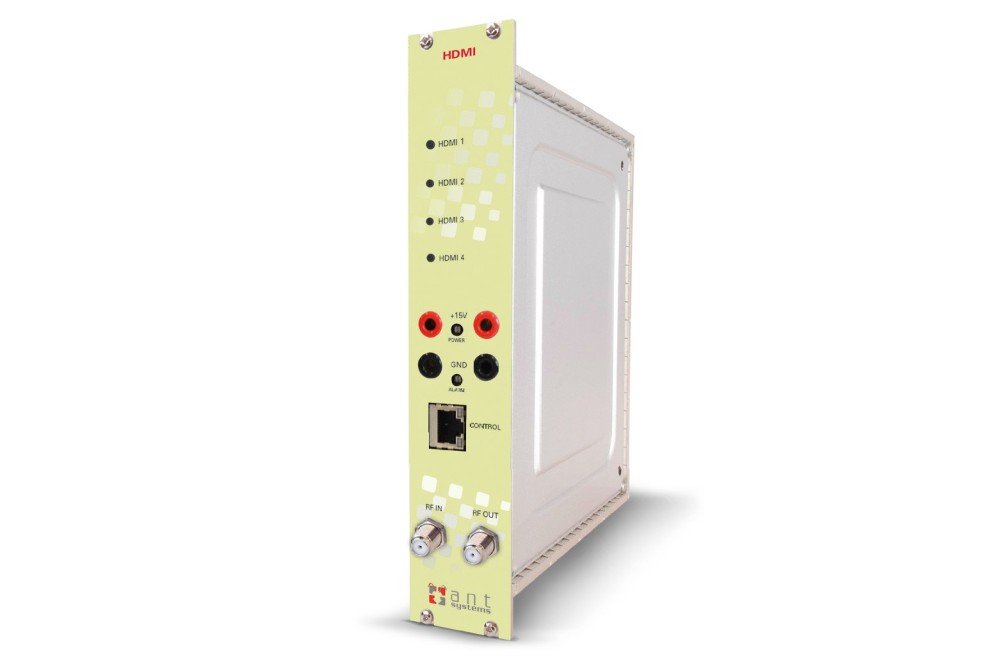

HDMI AV module | Coax-AV-HDMI-4

  • AV to DVB-C or DVB-T, DTMB, ATSC-C and ATSC-T
  • 4 inputs HDMI
  • 1 RF output
  • 1 passive loop-through
  • 2 multiplexes

Previous: Coax-DVB-T2-1CI-1 Mux COFDM Next: 19” rack (5U)

Specifications

AV HDMI to IP
Input
Number of inputs 4x HDMI 1.3
Video resolution 576i up to 1080p
Video encoding H264 / AVC
Audio encoding MPEG 1 Layer II / AAC
Connector type HDMI Type A
Output RF
Modulated channel frequency
 MHz 174 - 1218
Output level dBµV 55 - 99 (adjustable)
MER dB Typ. 38
Output settings
Output type DVB-C DVB-T DTMB ATSC-C ATSC-T
Bitrate Mbps 2 - 23 2 - 15
Channel bandwidth MHz 2 to 8 6, 7 or 8 8 6 6
Constellation 16 QAM | 32 QAM | 64 QAM | 128 QAM | 256 QAM COFDM (QPSK/ 16 QAM / 64 QAM) QPSK | QAM-4NR | 16 QAM | 32 QAM | 64 QAM 64 QAM | 256 QAM 8VSB
Other settings - Code rate, Guard Interval, 2K-8K Interleave Code rate 2K-8K Sync frame PN phase - -
General
Connectors Front Side: Output: RF + Loop-through, Management: 1 x RJ-45 (Ethernet), DC: Banana sockets
Rear side: HDMI Input: 4 x HDMI 1.3
Power Supply VDC 15
Consumption A 1,2
Operating temperature °C 0 to +40
Dimensions 5 RU x 8 TE x 330 mm
